sand filter

sand filter and pump 2 in 1

Simple installation
Water pump and sand cylinder are best matched
Acid alkaline corrosive liquid can be treated
High mechanical strength
Product description: The integrated filter sand cylinder refers to a water pump and filter sand cylinder with the best matching in the factory when configured, easy to install.
INQUIRY

Product Descriptions
All-in-one sand filter is another type vary from common sand filters. That is top-out sand filter connect to the base of water pump by a piece of glass fiber material. Filtration capacity and water flow rate are perfectly macthed.
Under common condition, all-in-one sand filter is used to filter contaminants which diameters under 40um, such as aquaculture wasted water, industrial wasted water and drinking water pre-filtration etc. While filter medium is quartz sand, water pumps in by the compression pump at the front end, the waters penestrate through the sands with high pressure, suspended substances are captured by the sand layer, therefore the water is filtered. Water flow in from the body head, the pressure is getting higher according to the resistance. While the pressure indicated on the piezometer is too high, it should run the backwashing operation. While backwashing, water flow in from the inlet on the head, and remove from the drain outlet, contaminants are removed with the water. Then switch back the head, to resume the filtration process.

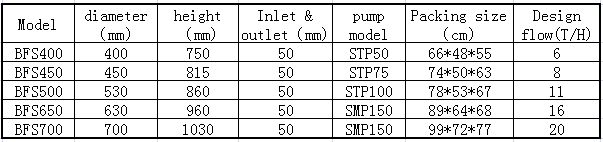

Designed flow rate of all-in-one sand filter is so big, body diameter is between 400-600mm

Product Features
Corrosion resistant, apply to seawater
Flow rate perfectly matched
Applicable Indsutries
Aquaculture water treatment, eco-friendly water treatment, water pre-filtration for foods, industrial waste water treatment, KOI pond water treatment etc.
